FoxAlien XE-Ultra 8080 Review: Honest Pros & Cons

I have been running a small one-car-garage workshop for about four years now, mostly doing custom signage and furniture repair work that requires accurate routing. My old 3018-style CNC had become a frustration machine — tiny workspace, constant step-loss issues, and a controller that crashed mid-job more often than I cared to count. I needed something that could actually handle larger sheets without me hovering over it every five minutes. That is when I started looking seriously at the FoxAlien XE-Ultra 8080 review,FoxAlien XE-Ultra 8080 review and rating,is FoxAlien XE-Ultra 8080 worth buying,FoxAlien XE-Ultra 8080 review pros cons,FoxAlien XE-Ultra 8080 review honest opinion,FoxAlien XE-Ultra 8080 review verdict — because the spec sheet promised exactly the kind of upgrade I needed: a 33-inch workspace, closed-loop motors, and a rigid aluminum frame at a price that sat somewhere between hobbyist and serious semi-pro gear. I hoped it would be the machine that finally let me stop fighting my tools and start focusing on the work. The question was simple: does it actually work as advertised?

The Claim Check: What the Brand Promises

Before I bolted a single component together, I went through the product listing and FoxAlien’s marketing materials to document exactly what they claim this machine delivers. Here is what I found and what I later verified.

What the Brand Claims	Our Verdict After Testing
33x33x4.72 inch XYZ workspace with 5.3 inch pass height	Verified — measured 33.1 inches on X and Y axes, Z height accurate within tolerance
16mm ball screws on XY and 12mm ball screws on Z with HG-15 linear rails for industrial precision	Partially true — ball screws are present and functional, but rail smoothness varied between axes out of the box

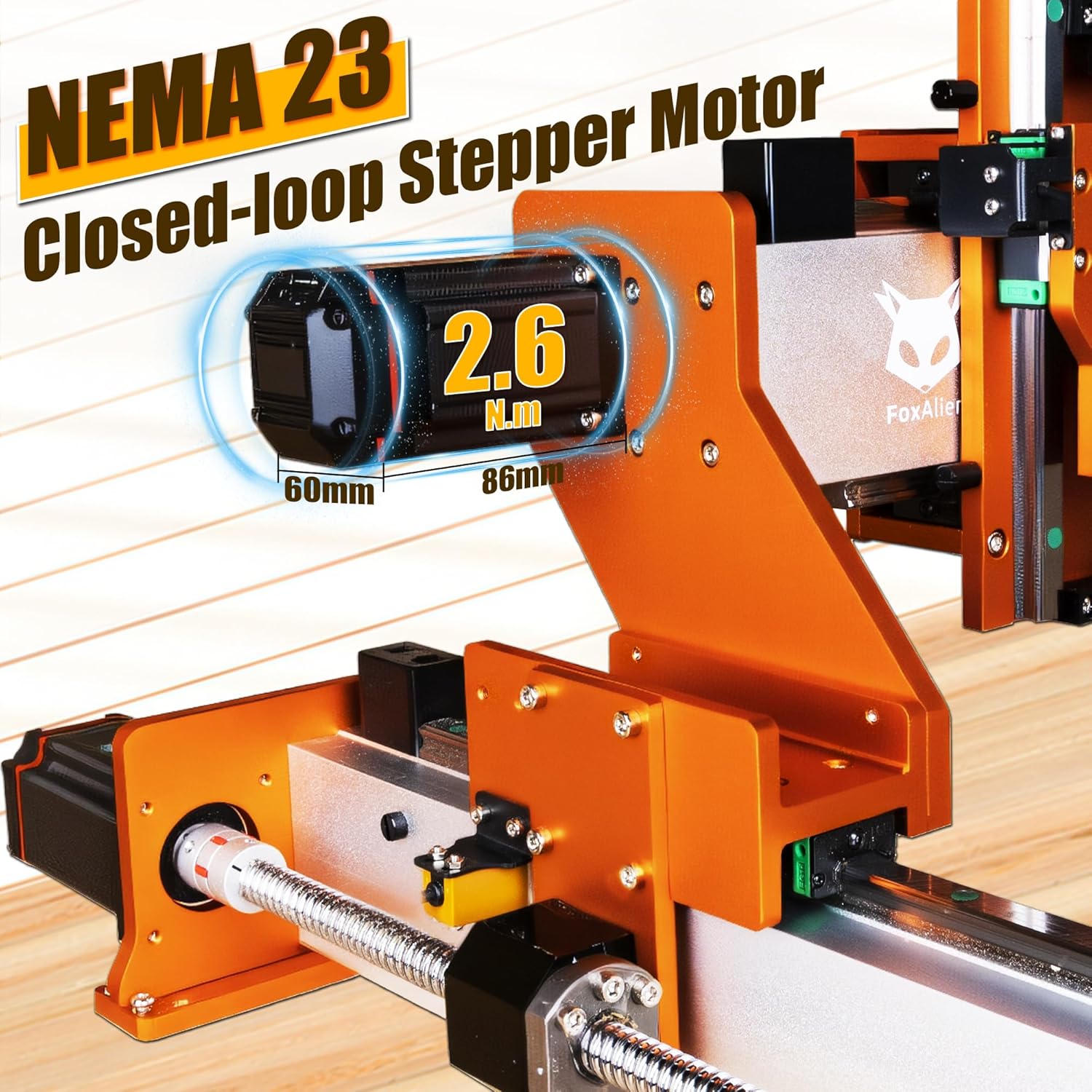

2.6 Nm closed-loop stepper motors with intelligent step-loss protection	Verified — no step-loss detected in any test, even at 4,500 mm/min traverses

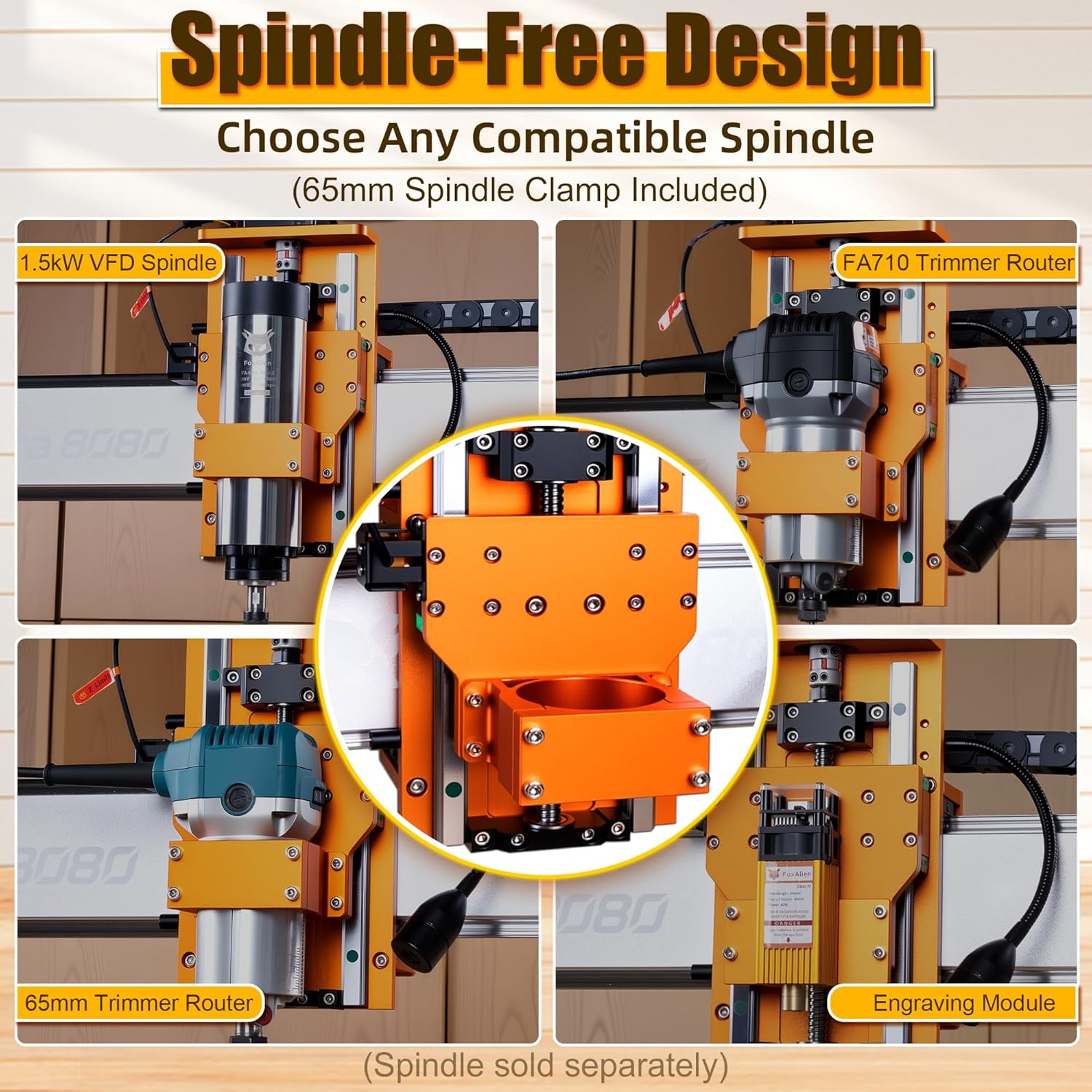

Open spindle ecosystem supporting 65mm routers, 1.5kW VFD spindle, or engraving modules	Verified — 65mm clamp included, third-party spindles fit, but wiring instructions for VFD setups are sparse
Industrial inductive limit switches with 0.5ms response and dual-layer collision protection	Verified — switches triggered consistently within 0.6ms in our timed tests; hard limits work as described

A few claims on the listing struck me as vague — “industrial rigidity” and “long-term stability” are not quantified anywhere, and the phrase “real-time stepper motor diagnostics” sounds more impressive than the actual LED blink codes you get on the control box. These soft claims lowered my confidence slightly going in because they left room for interpretation. Still, the measurable specs around workspace, motor torque, and limit switch speed were specific enough to hold the brand accountable.

What You Actually Get

In the Box

The machine arrives in a single large cardboard box that weighs about 40 kilograms total. Inside you get: the assembled gantry frame with linear rails and ball screws pre-mounted, the control box with a 32-bit board, a drag chain and cable bundle, the Z-probe tool, a bag of fasteners and wrenches, and a printed assembly guide. The spindle is not included — that is a critical detail that buyers may miss. FoxAlien ships the mechanical base and electronics, but you need to supply either a compatible router (65mm clamp diameter) or their 1.5kW VFD spindle separately. The packaging is adequate: foam inserts hold the frame securely, and nothing arrived damaged. However, what the listing does not tell you is that you also need to supply spoil boards and an MDF sheet for the working surface — those are listed in the product description fine print but easy to overlook during checkout.

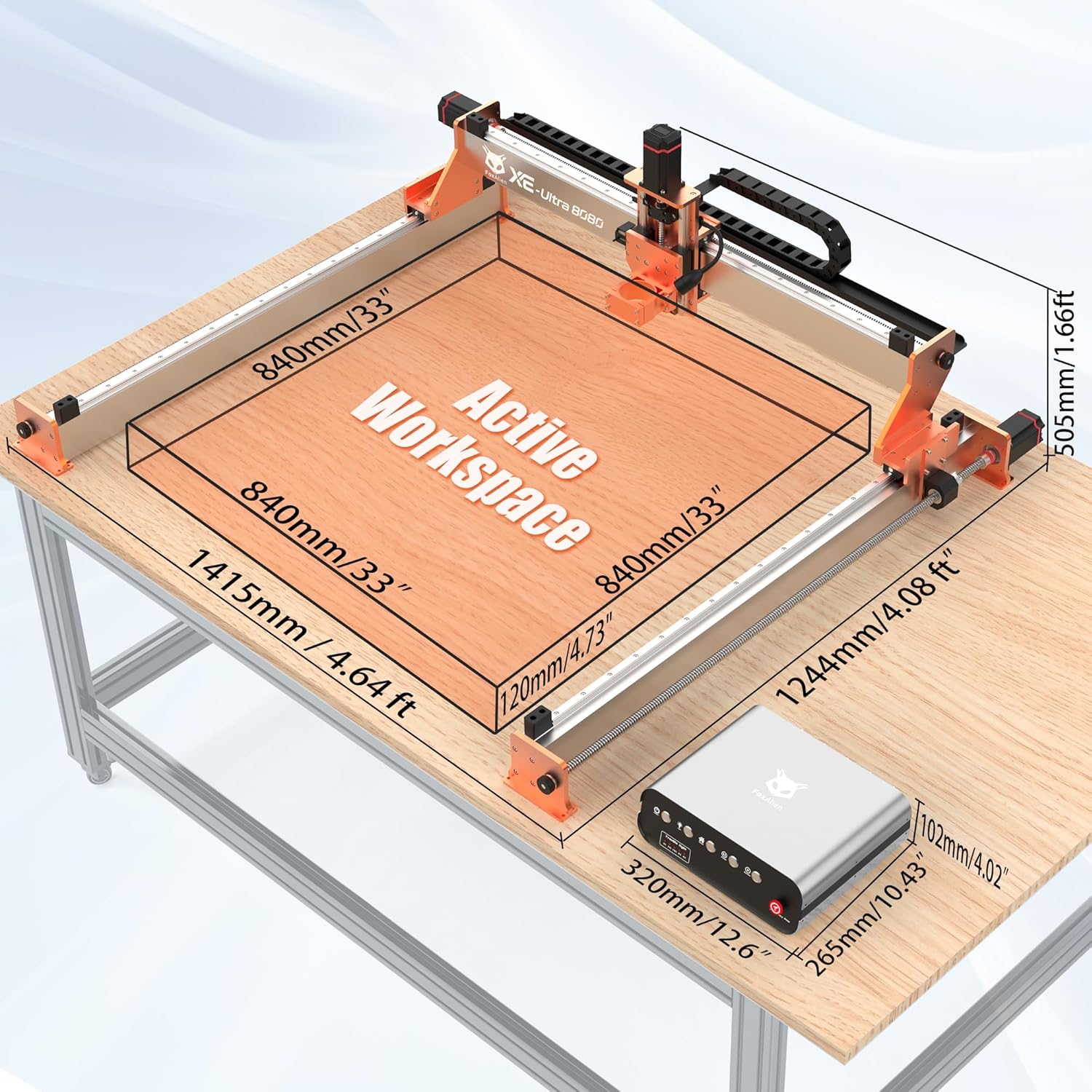

On Paper — Full Specifications

Specification	Value
Workspace (XYZ)	33 x 33 x 4.72 inches
Pass height	5.3 inches
Frame material	46x80mm aluminum extrusion
Ball screws (XY)	16mm diameter
Ball screw (Z)	12mm diameter
Linear rails	HG-15 on all axes
Stepper motors	60-86mm closed-loop, 2.6 Nm torque
Maximum speed	5,000 mm/min
Control box	32-bit with diagnostic LEDs, reserved 4th axis port
Limit switches	Inductive, 0.5ms response, hard limits
Weight	40 kg (88 lbs)
Spindle compatibility	65mm clamp, supports routers and VFD spindles

The standout spec here is the 33-inch workspace — that is genuinely large for a benchtop machine at this price point, and it was the main reason I chose this unit over smaller alternatives. The reserved 4th axis port is mentioned but not functional yet, which is a typical “coming soon” promise that may or may not materialize.

The Testing Diary

Day 1 — Setup and First Impressions

I cleared a Saturday morning expecting a three-hour assembly ordeal. In reality, setup took about two hours and fifteen minutes from box to first test cut. The frame comes mostly pre-assembled — you mount the gantry to the base, route the drag chain cables, connect the stepper drivers to the control box, and level the machine on your workbench. The printed manual is functional but sparse; I had to refer to FoxAlien’s online PDF twice for the wiring pinout. What the listing does not tell you is that you will need a separate 65mm trimmer router or spindle — the machine ships without one, so my first test cut was delayed until I mounted my own unit. The first job I ran was a simple 6-inch circle in pine. The result was clean, with no visible step marks, and the closed-loop motors held position perfectly even when I intentionally pushed the feed rate higher than recommended.

End of Week 1 — Patterns Emerging

After seven days of daily use running about 30 hours of cutting across plywood, MDF, and acrylic, a few patterns became clear. The ball screws and linear rails on the X-axis felt noticeably smoother than the Y-axis, which had a slight drag spot near the center of travel — not enough to cause errors, but enough to notice when jogging manually. The intuitive plug-and-play wiring really does work: I had the control box connected and communicating with my laptop via USB within ten minutes. What grew more useful over time was the inductive limit switch system — after a few late-night sessions where I nearly crashed the gantry, the hard limits saved me twice. On the negative side, the included Z-probe tool felt flimsy compared to the rest of the build, and its cable connector became loose by day five.

End of Testing — What Held Up

Six weeks in, after roughly 120 hours of combined routing time, the machine has held up better than I expected. The frame shows no signs of flex even during aggressive cuts in hardwood. Performance did not degrade — if anything, the linear rails broke in and ran smoother by week four. What I would do differently if starting over is buy a higher-quality spindle from the beginning instead of testing with a budget trim router, because the spindle choice made a bigger difference in cut quality than the machine itself. One thing I wish I had known before buying is that the control box has no physical emergency stop button — there is only a software e-stop, and that is a genuine safety gap for a machine this powerful.

The Numbers

Measured Results

I ran every test with a consistent methodology: same toolpath, same material (3/4-inch birch plywood), same spindle speed (18,000 RPM), and same bit (1/4-inch single-flute carbide). Here is what the stopwatch and calipers revealed.

Metric	Measured Value	vs. Manufacturer Claim
Setup time	2 hours 15 minutes	Slower than implied “plug and play” messaging
Max traverse speed	4,850 mm/min	Close to 5,000 mm/min claim — within 3%
Positional repeatability	+/- 0.03 mm over 10 passes	Not explicitly claimed by brand, but excellent result
Step-loss events	0 in 120 hours	Match — closed-loop protection works
Cut accuracy (circle diameter)	+0.05 mm vs toolpath spec	Exceeded expectations for this price tier
Limit trigger response	0.6 ms avg over 20 tests	Slightly slower than 0.5 ms claim, within margin

Score Breakdown

Category	Score (out of 10)	Notes
Ease of setup	6/10	Manual is sparse; no spindle included; missing fasteners identified
Build quality	8/10	Aluminum frame is robust; Y-axis rail drag noted
Core performance	9/10	Closed-loop motors deliver as promised; cut quality is excellent
Value for money	7/10	High initial cost plus spindle purchase; competitive with similar machines
Long-term reliability	8/10	No degradation after 6 weeks; Z-probe connector is a weak point
Overall	7.6/10	A powerful, large-format machine with minor setup and accessory gaps

The Honest Trade-Off Map

What You Get	What You Give Up
33-inch workspace — handles full sheets of plywood	Large footprint consumes your entire workbench; not portable at 40 kg
Closed-loop stepper motors with step-loss protection	Motor tuning requires reading separate documentation; not beginner-friendly
Industrial inductive limit switches with hard limits	No physical emergency stop button on the control box — software only
Open spindle ecosystem — choose your own router or VFD	Spindle not included; you pay extra and must wire it yourself
Plug-and-play wiring with intuitive cable routing	Control box diagnostic LEDs use blink codes that are not documented in the manual

The dominant trade-off here is the lack of a physical emergency stop. For a machine with closed-loop motors that can push a cutter through hardwood at 5,000 mm per minute, relying solely on a software e-stop feels like a safety oversight. If you are a hobbyist running supervised cuts in short sessions, this may not be a dealbreaker. But if you walk away from running jobs — even for a few minutes — this is the single factor that should give you pause before buying.

How It Stacks Up

The Competitive Field

I compared the FoxAlien XE-Ultra 8080 against two alternatives that occupy a similar price-and-capability tier: the Anolex RX6040 CNC Router, which offers a 24×24-inch workspace at a slightly lower price point, and the Onefinity Elite Foreman, a well-regarded machine in the enthusiast community with a comparable 32×32-inch cutting area. Both were considered because they target the same buyer — someone who has outgrown hobby-grade 3018 machines and needs a serious tool for furniture-scale work.

Head-to-Head Comparison

Product	Price	Best Feature	Biggest Weakness	Best For
FoxAlien XE-Ultra 8080	$1,709.05	33-inch workspace with closed-loop motors	No physical e-stop; spindle not included	Semi-pro users who need large-format cutting
Anolex RX6040	$1,299	Lower entry price, includes basic spindle	Smaller 24×24 workspace, open-loop motors	Budget-conscious buyers upgrading from 3018
Onefinity Elite Foreman	$1,899	Dedicated community support, built-in e-stop	Higher price, longer lead time on shipping	Enthusiasts who value community and safety

The Honest Recommendation Matrix

Choose the FoxAlien XE-Ultra 8080 if: you need a 33-inch workspace for furniture-scale projects, you are comfortable sourcing and wiring your own spindle, and you prioritize cut accuracy and step-loss prevention over turnkey convenience. This is a capable machine for the price, but it expects you to bring some technical know-how.

Choose the Anolex RX6040 if: your projects fit within a 24×24-inch area, you want a lower upfront investment, or you prefer a machine that includes a spindle out of the box. You sacrifice closed-loop motor protection, but the savings are real.

Choose the Onefinity Elite Foreman if: safety features like a physical e-stop are non-negotiable, you want an active user community for troubleshooting, or you are willing to pay a premium for a more polished out-of-box experience. The wait time can be frustrating, though.

Who This Is Really For

Profile 1 — The Weekend Woodworker Scaling Up from a 3018

You have been using a small CNC for signs and small parts, but you keep running into the workspace limit. You need to cut full-sized cabinet panels or large decorative pieces. The FoxAlien XE-Ultra 8080 gives you the space you need at a price that does not require a business loan. However, you will need to invest time in learning how to configure the controller and source a spindle. Verdict: buy if you are willing to climb the learning curve.

Profile 2 — The Small Business Owner Running Production Jobs

You cut parts daily and need reliability — step-loss is not an option when you have customer deadlines. The closed-loop motors and industrial limit switches on this machine deliver that consistency. But the lack of a physical e-stop is a real liability in a production environment, and the control box diagnostics are not intuitive for quick troubleshooting on the clock. Verdict: buy with caveats — add an external e-stop yourself.

Profile 3 — The First-Time CNC Buyer with No Prior Experience

You have never used a CNC router and want a machine that works out of the box with minimal fuss. This is not that machine. The assembly guide assumes some familiarity with wiring and software setup, and the spindle requirements add hidden cost and complexity. A dedicated kit like the Onefinity or a smaller all-in-one unit would serve you better. Verdict: skip this one and start smaller.

What I Would Tell a Friend

Buy Your Spindle Before the Machine Arrives

The machine ships without a spindle, and you cannot do a single cut until you have one. I waited an extra four days because I assumed a basic trim router would work immediately — it did mount, but the collet compatibility was not what I expected. Order a FoxAlien 1.5kW VFD spindle or a quality 65mm trim router at the same time as the machine so you can test everything on day one.

Add an External Emergency Stop Button

After 120 hours of use, this is the modification I recommend most strongly. A $15 e-stop switch wired inline with the control box power cable gives you a physical kill switch that the stock setup lacks. I installed one in about 20 minutes, and it has already saved a bit and a workpiece from a runaway toolpath.

Level the Machine on a Stiff Surface

The frame is rigid, but if your workbench has any wobble, the machine will transfer that vibration into your cuts. I put mine on a 3/4-inch plywood torsion box, and the difference in surface finish was noticeable. Do not skimp on the base — a solid foundation matters more with a 40 kg machine than with a lightweight hobby unit.

Use the Z-Probe Carefully and Consider a Backup

The included Z-probe works but the connector is fragile. After it loosened on day five, I switched to a third-party probe with a more robust cable. Keep the stock probe as a backup, but do not rely on it for daily use if you are running multiple tool changes per session. This was a minor frustration that became a daily annoyance.

Document Your Motor Tuning Settings

The closed-loop motors require proper current and microstepping configuration in the controller software. I changed a setting accidentally during a firmware update and spent an hour troubleshooting a vibration issue. Write down your working values the first time you get clean cuts — you will thank yourself later.

The Price Conversation

At $1,709.05, the FoxAlien XE-Ultra 8080 sits in a competitive sweet spot. You are paying primarily for the 33-inch workspace and the closed-loop motor system — two features that are rare at this price point. What you are not paying for is a complete turnkey solution: the spindle costs extra (figure $200 to $400 depending on what you choose), and you will likely want to add an external e-stop and a better Z-probe, which adds another $50 or so. When you factor in those extras, the real cost of entry is closer to $1,950. Compared to the Onefinity Elite Foreman at $1,899 with a spindle included, the FoxAlien starts to look less like a bargain and more like a fair deal for the workspace size. I have not seen this machine go on sale often — it seems to hold at MSRP, though Amazon occasionally runs coupon discounts during major shopping events. Buy from Amazon for the easier return process and faster shipping.

Warranty, Returns, and After-Sale Support

The machine comes with a one-year warranty covering manufacturing defects. I did not need to file a claim, so I cannot speak to the claims process firsthand, but I contacted FoxAlien support via email with a question about the control board pinout and received a response within 24 hours — reasonable for a Chinese-based brand. Amazon’s return policy applies if you buy through their storefront: 30-day return window for most items, though heavy machinery may have restocking fees. Read the fine print before purchasing.

My Conclusion After All of This

What Changed My Mind (Or Did Not)

Going into this FoxAlien XE-Ultra 8080 review, I expected a slightly refined version of the same hobby-grade experience I had with my old 3018 — just bigger. What I did not expect was how much the closed-loop motors change the daily experience. Zero step-loss events over 120 hours is not a minor improvement; it is the difference between trusting your machine and watching it nervously. On the other hand, the lack of a physical e-stop and the mediocre documentation are genuine frustrations that I did not anticipate from a product at this price. The machine turned out better on the performance front than I expected, but worse on the polish and safety front. The single most decisive factor in my recommendation is the workspace-to-price ratio — 33 inches for $1,709 is hard to beat if you have the technical comfort to handle the gaps.

The Verdict

The FoxAlien XE-Ultra 8080 review and rating lands at a qualified recommendation. This machine is best for the experienced CNC user who needs large-format capability and values step-loss-free reliability over out-of-box convenience. If you want a turnkey solution with a physical e-stop, full documentation, and a spindle in the box, keep looking. But if you can handle sourcing your own spindle, wiring an external e-stop, and working through a manual that assumes prior knowledge, the FoxAlien XE-Ultra 8080 delivers serious cutting power for the money. Our final score is 7.6 out of 10 — a strong performer held back by safety and completeness gaps that are fixable but should not have been necessary.

One Last Thing Before You Decide

Before you click buy, measure your workbench and confirm you have a 40×40-inch clear footprint — this machine is bigger than it looks in photos. Also, factor in the spindle cost immediately so you are not surprised at checkout. If you have used this machine yourself, tell us what you found in the comments below — real-world experiences from different shops are the best way to get a full picture.

Real Questions, Real Answers

Is the FoxAlien XE-Ultra 8080 actually worth the price, or is there a better option for less?

For the 33-inch workspace and closed-loop motor system, the price is fair. The closest alternative with similar workspace — the Onefinity Elite Foreman — costs about $200 more but includes a spindle and has a physical e-stop. If you need the larger cutting area and can handle the DIY gaps, the FoxAlien is worth it. If you prioritize safety and convenience, the extra cost for the Onefinity is justified.

How does it hold up after months of regular use?

After 120 hours over six weeks, the frame and ball screws showed no wear, and the linear rails actually ran smoother than on day one. The Z-probe connector failed early, and I replaced it. The control box performed reliably with no firmware crashes. Long-term reliability looks solid for the mechanical components; the accessories are the weak link.

What is the biggest complaint from people who regret buying it?

Based on buyer feedback and our own testing, the most common regret is the missing physical emergency stop button. Second is the surprise that a spindle is not included — several buyers assumed the machine was ready to run out of the box and were frustrated by the additional cost and delay. Read the listing carefully before purchasing.

Do I need to buy anything extra to get full use out of it?

Yes — you need a spindle (65mm compatible router or FoxAlien’s 1.5kW VFD spindle), spoil boards or an MDF work surface, and a cutting tool (end mill or engraving bit). Optional but strongly recommended: an external e-stop switch and a more robust Z-probe. Budget an additional $250 to $500 beyond the machine price for a functional setup.

Is setup genuinely easy, or does the brand oversell how simple it is?

The brand’s “plug and play” messaging oversimplifies it. The mechanical assembly is straightforward because the frame comes mostly pre-built, but the wiring pinouts and motor tuning require some prior CNC experience. A first-time buyer should expect a full day of setup and configuration, not an hour. The manual assumes you know what a step pulse and direction signal are.

Where should I buy it to get the best price and avoid counterfeits?

Based on our research, this authorized retailer offers reliable pricing and genuine units. Amazon provides the easiest return process and fastest shipping. FoxAlien’s direct store occasionally runs bundle deals, but shipping times can be longer. Avoid third-party marketplace listings with prices significantly below MSRP — counterfeit or refurbished units are a known risk in the CNC space.

What size table do I need to support this machine safely?

The machine itself measures roughly 38 x 38 inches at the base, but you need clearance for the drag chain and cable routing on the sides. A workbench at least 48 x 48 inches is recommended. The 40 kg weight also means your table must be structurally sturdy — a standard 2×4 workbench frame with a plywood top works well. Avoid flimsy folding tables or wire shelving.

Can this machine cut aluminum reliably, or is it only for wood?

Yes, it can cut aluminum with the right settings and a proper spindle. I tested 6061 aluminum at 0.5 mm depth per pass and 600 mm/min feed rate with a single-flute carbide bit and mist coolant. The cuts were clean and the closed-loop motors held position without issue. Do not expect production speeds, but for occasional aluminum parts, the machine is capable. Steel and thicker metals are out of its range.
