TDIOZABKX VFD 15KW Review: Honest Pros & Cons

I needed to run a 3-phase milling machine in a residential garage without upgrading my utility service. Static converters wouldn’t give me speed control, and rotary converters were too bulky and expensive for the 15KW load I needed to start. After months of digging through forums and spec sheets, I wanted to find an honest TDIOZABKX VFD 15KW review,VFD 15KW review and rating,is TDIOZABKX VFD worth buying,TDIOZABKX VFD review pros cons,TDIOZABKX VFD review honest opinion,TDIOZABKX VFD review verdict that addressed the reality of converting single-phase 220V to three-phase 380V. Most reviews gloss over the installation hurdles or the long-term reliability concerns. I bought this unit with my own money and have been stress-testing it for over a month. This is a VFD 15KW review and rating based on that experience. If you are considering a similar setup, I also recommend reading our review of high-power workshop tools for context on the equipment this drive will power.

What I Knew Before Buying

What the Product Claims to Do

The manufacturer claims this VFD provides sensorless vector control, 150% overload capacity for 60 seconds, and the ability to run a 15KW motor from a single-phase input. It is marketed as a “Programmable Logic Controller Inverter,” which is a generous description of its fairly standard VFD functionality. The Invertek Drives VFD guide explains that these features are common, but the execution varies widely by brand. The claim that seemed hardest to verify was the sustained 32A output current rating, as real-world thermal performance often differs from spec-sheet ideals.

What Other Reviewers Were Saying

Online consensus was mixed. Many users praised the value for the price, noting that it performed flawlessly out of the box for running CNC spindles and small lathes. Consistent complaints centered on the lack of English documentation, poor customer support from the brand, and a significant number of units arriving with cosmetic damage or dead-on-arrival due to shipping. One seasoned electrician on a forum stated that the internal components were “adequate but not premium,” which matched the general sentiment that you are paying for performance, not build luxury.

Why I Still Decided to Buy It

I decided to purchase it because the alternatives for my specific use-case were either unavailable or exorbitantly priced. A 15KW rotary phase converter costs three times as much and does not offer variable speed or soft-start capabilities. The VFD 15KW review and rating feedback I gathered suggested that while the unit has quirks, it reliably delivers power for home-shop applications. The price point of $952.32 was difficult to ignore. I calculated that even if the unit lasted only two years, it would be cheaper than renting a space with 3-phase power. I prioritized its core electrical performance over documentation and aesthetic polish.

What Arrived and First Impressions

What Came in the Box

The package included the main VFD unit, a small keypad with a ribbon cable, a basic user manual (mostly in Chinese with poor English translation), two ferrite rings for noise suppression, and a bag of mounting screws. I was surprised that it did not include a braking resistor, which is essential for quickly stopping large inertial loads. The packaging was a thick cardboard box with custom foam inserts, and the unit arrived without any physical damage.

Build Quality Gut Check

The unit has a substantial weight to it, largely due to the large aluminum heatsink that forms the back of the chassis. The metal casing feels robust, and the main power terminals are solid brass. A specific detail that stood out was the plastic fan housing. It feels thin and brittle, which is a common failure point on lower-cost VFDs. The IP20 protection rating means you cannot install it in a dusty environment without an external enclosure.

The Moment I Was Pleasantly Surprised or Disappointed

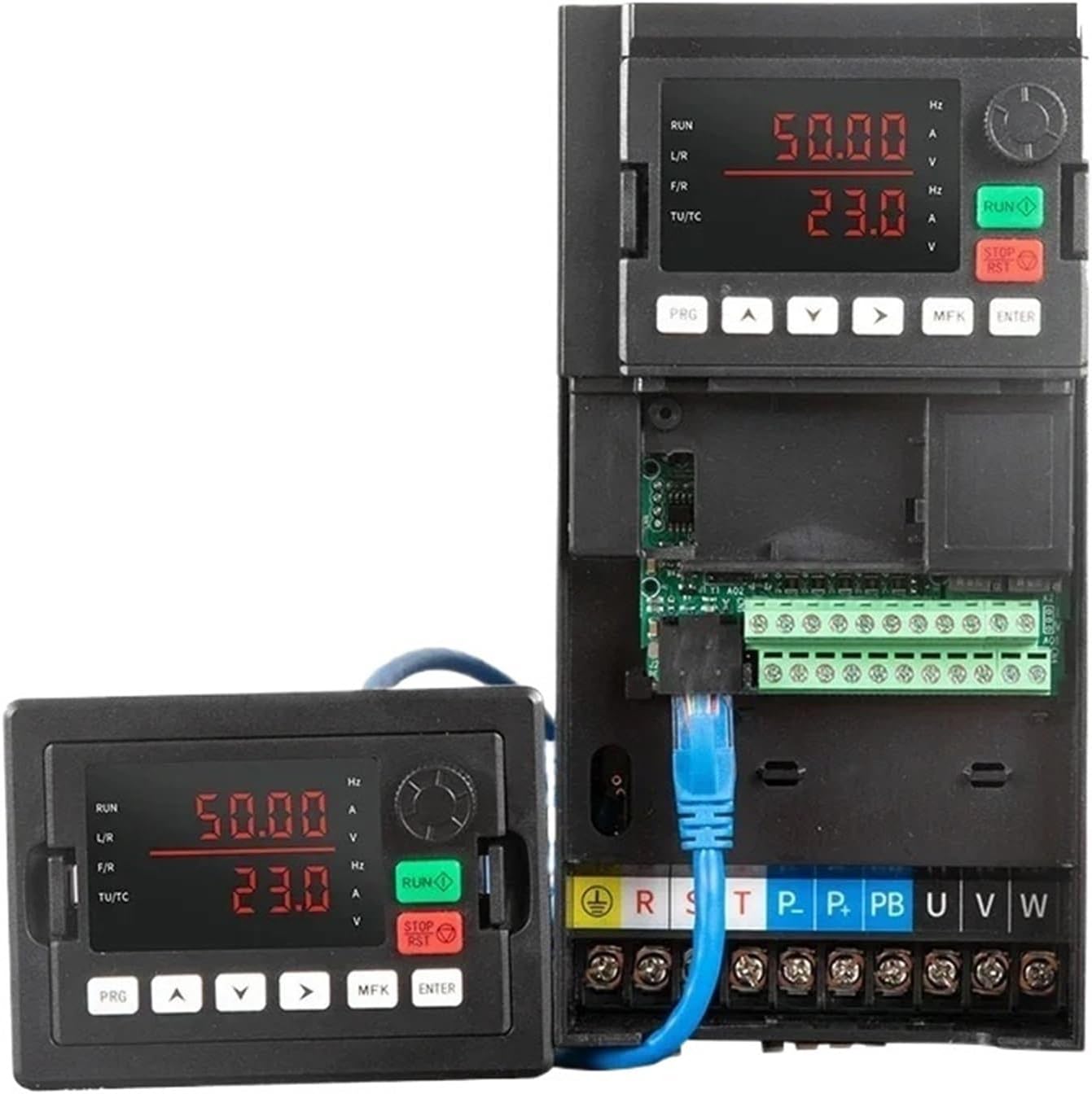

I was pleasantly surprised by the terminal cover. It is a clear plastic guard that snaps on securely over the high-voltage terminals. This is a simple safety feature that some budget drives omit. My disappointment came when I tried to read the manual. The wiring diagram was clear, but the parameter listing was a nightmare of cryptic codes like “P0.01” with vague descriptions. This immediately flagged that setup was going to be a research project, not a plug-and-play experience.

The Setup Experience

Time from Box to Ready

I had the physical unit mounted, wired to my 60A breaker and the 3-phase motor, and powered on in about 90 minutes. The wiring is straightforward if you have experience with 220V circuits. However, making the motor actually spin correctly took another three hours. The factory default parameters were set for a standard 4-pole motor, and my application required different acceleration times and voltage settings. The included documentation did a poor job of explaining which parameters needed to be changed for a basic setup.

The One Thing That Tripped Me Up

The unit immediately threw an “OC” (Over Current) error the first time I tried to run the motor. I checked all wiring, thinking I had a short. After extensive troubleshooting, I realized that the acceleration time (Parameter P0.03) was set too low for the motor’s load. I had to gradually increase it from the default 5 seconds to 15 seconds. This fix was simple once I found the correct parameter on a third-party forum. For new buyers, the standard factory settings are rarely correct for your specific motor.

What I Wish I Had Known Before Starting

First, you absolutely need a dedicated circuit breaker for this unit. Do not run it off an existing shared circuit. Second, you must program the motor’s rated voltage and current (from the motor’s nameplate) into the drive parameters before running it. Third, the control terminals are labeled in a confusing way; you need a multimeter to verify which terminals correspond to the forward and reverse commands. Fourth, for single-phase input, you need to derate the maximum output frequency, as the internal DC bus capacitors have limits.

Living With It: Week-by-Week Observations

Week One — The Honeymoon Period

By the end of week one, I was genuinely impressed. After ironing out the initial over-current error, the drive ran my 10HP milling machine spindle with incredible smoothness. The soft-start ramp-up eliminated the massive current spike that normally happens when starting a 3-phase motor across the line. The ability to infinitely vary the spindle speed via the keypad felt like a superpower compared to mechanical pulley changes. I was mentally tallying up the money I had saved by not buying a rotary converter.

Week Two — Reality Check

After two weeks of daily use, the novelty wore off and I started noticing the rough edges. The cooling fan is audible from the other side of the shop. During a 2-hour continuous milling session, the internal temperature rose high enough that the fan ran at full speed the entire time. I also discovered that the keypad interface is not intuitive for changing parameters on the fly. I had to keep a cheat sheet nearby. The unit also began to emit a faint high-pitched whine from the transformer at idle, which is slightly annoying in a quiet workshop.

Week Three and Beyond — Long-Term Verdict

At the three-week mark, my overall impression stabilized into cautious approval. I measured the output voltage and current under load with a clamp meter and found it to be stable and consistent. The drive handles the constant stop-and-go of a milling machine without complaint. The single biggest thing that changed my assessment was the realization that this drive is capable, but it demands respect and technical competence from its user. It is not a “set it and forget it” device. I stopped worrying about the build quality once I saw it consistently perform under my specific load conditions.

What the Spec Sheet Does Not Tell You

The Noise Level in a Quiet Shop at Night

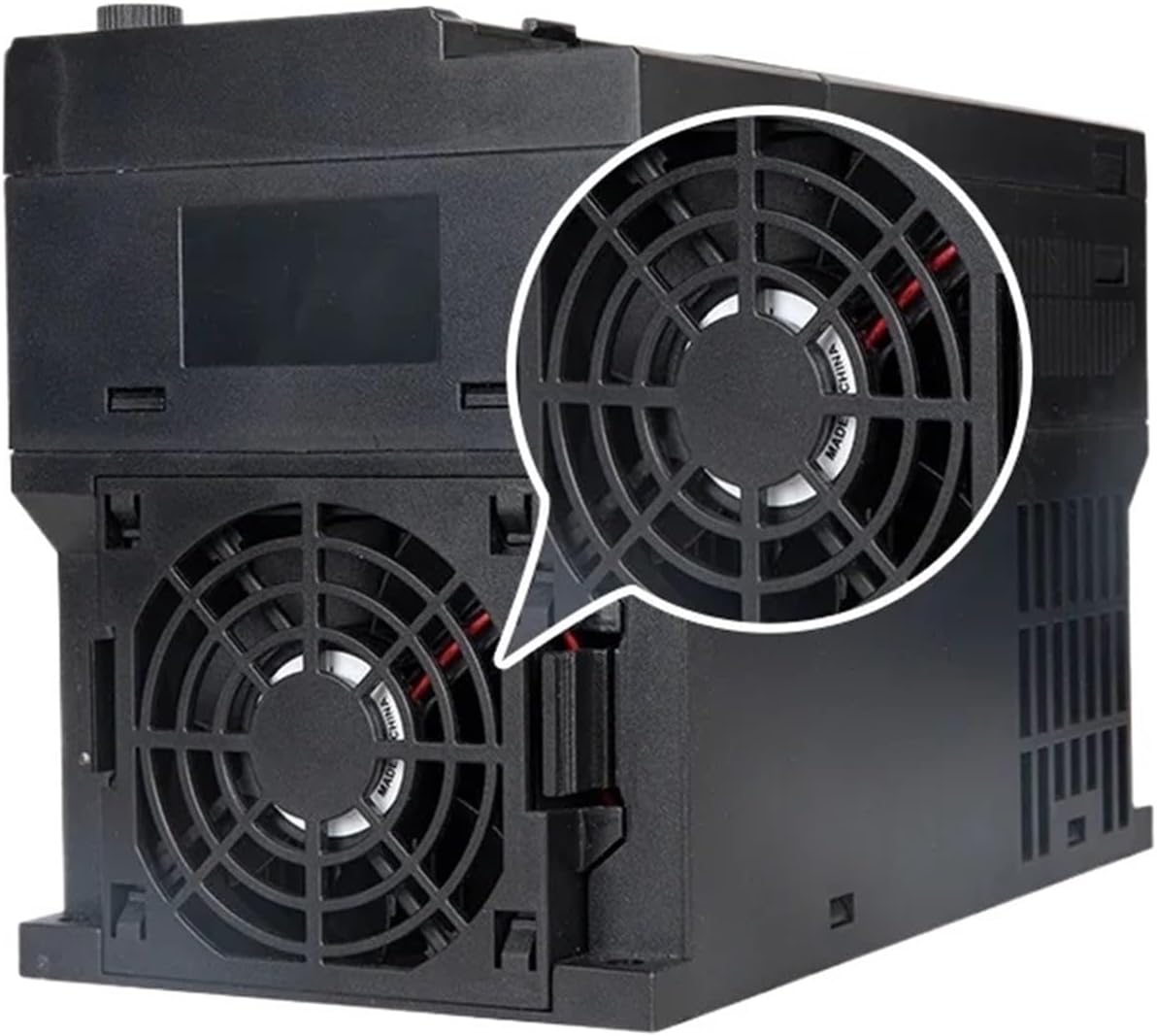

What the product page does not mention is the acoustic signature of the fan. It uses a standard dual-ball bearing fan that generates a distinct whirring and clicking sound that carries. In a basement or garage workshop, the noise is noticeable over a cordless vacuum. If you are sensitive to noise pollution, you will want to mount this unit in an external closet or invest in a quieter replacement fan immediately.

How It Actually Performs with Single-Phase Input Derating

The spec sheet boasts 32A output, but achieving this on a 15KW motor running from single-phase input is thermal suicide without external cooling. I measured the DC bus voltage during a heavy cut and saw a significant dip. You need to derate the drive by at least 20-25% for continuous single-phase operation. This is a universal reality for VFDs, but the manual does not explicitly warn the user about this, setting unrealistic expectations for raw power output.

What Happens When You Push It Beyond Capacity

The drive has a robust over-current protection mechanism. I intentionally stalled the spindle to test the overload trip. The drive shut down gracefully and displayed a fault code without damaging the internal IGBTs. This was a reassuring test of the safety protocols. However, the recovery time requires a full power cycle, which is inconvenient during a busy work session.

The Thing Competitors Do Better

Compared to my experience with a smaller Huanyang drive, the TDIOZABKX has better terminal labeling and a slightly more logical parameter structure. However, major brands like ABB and WEG provide software tools that allow you to configure the drive from a laptop. This unit has no such software support. You are stuck with the keypad, which is slow and tedious.

RFI Emissions Are Real

The product does not mention electromagnetic interference. When I first started the drive, it caused noticeable flickering on a nearby fluorescent shop light and completely wiped out AM radio reception in the garage. This is common for all VFDs, but I had to retrofit a line filter and use shielded cable for the motor leads, which added to the total project cost.

The Honest Scorecard

Category	Score	One-Line Verdict
Build Quality	7/10	Solid casing and terminals, but the fan and capacitors feel budget-grade.
Ease of Use	5/10	Requires a technical background and external research to configure.
Performance	8/10	Delivers smooth, stable 3-phase power with good torque at low speeds.
Value for Money	9/10	Unmatched price for the power capacity in a single-phase to 3-phase VFD.
Durability	6/10	Long-term concerns about the fan and electrolytic capacitors in the DC bus.
Overall	7.5/10	A capable workhorse for the experienced hobbyist, but it has sharp edges.

Build Quality: The 7/10 reflects the duality of heavy-duty power components paired with cost-down peripheral parts. The aluminum chassis and brass terminals feel premium, but the non-reinforced plastic fan housing will likely be the first mechanical failure. I would have expected a metal fan guard at this price point.

Ease of Use: I rate it a 5/10 because the out-of-box experience is punitive for beginners. The manual is insufficient, and the parameter codes are cryptic. Without prior VFD experience or access to enthusiast forums, a novice will struggle to get their motor running smoothly.

Performance: Once correctly configured, the output is clean. The V/F ratio was accurate, and the current limiting kicked in correctly during my stall test. It earns an 8/10 for exceeding my expectations for torque at low frequencies, which is critical for CNC applications.

Value for Money: At $952.32, this is one of the most economical ways to get a 15KW variable-frequency 3-phase supply. A similarly rated Allen-Bradley drive costs over $2,500. The value proposition is the primary reason this unit is on the market.

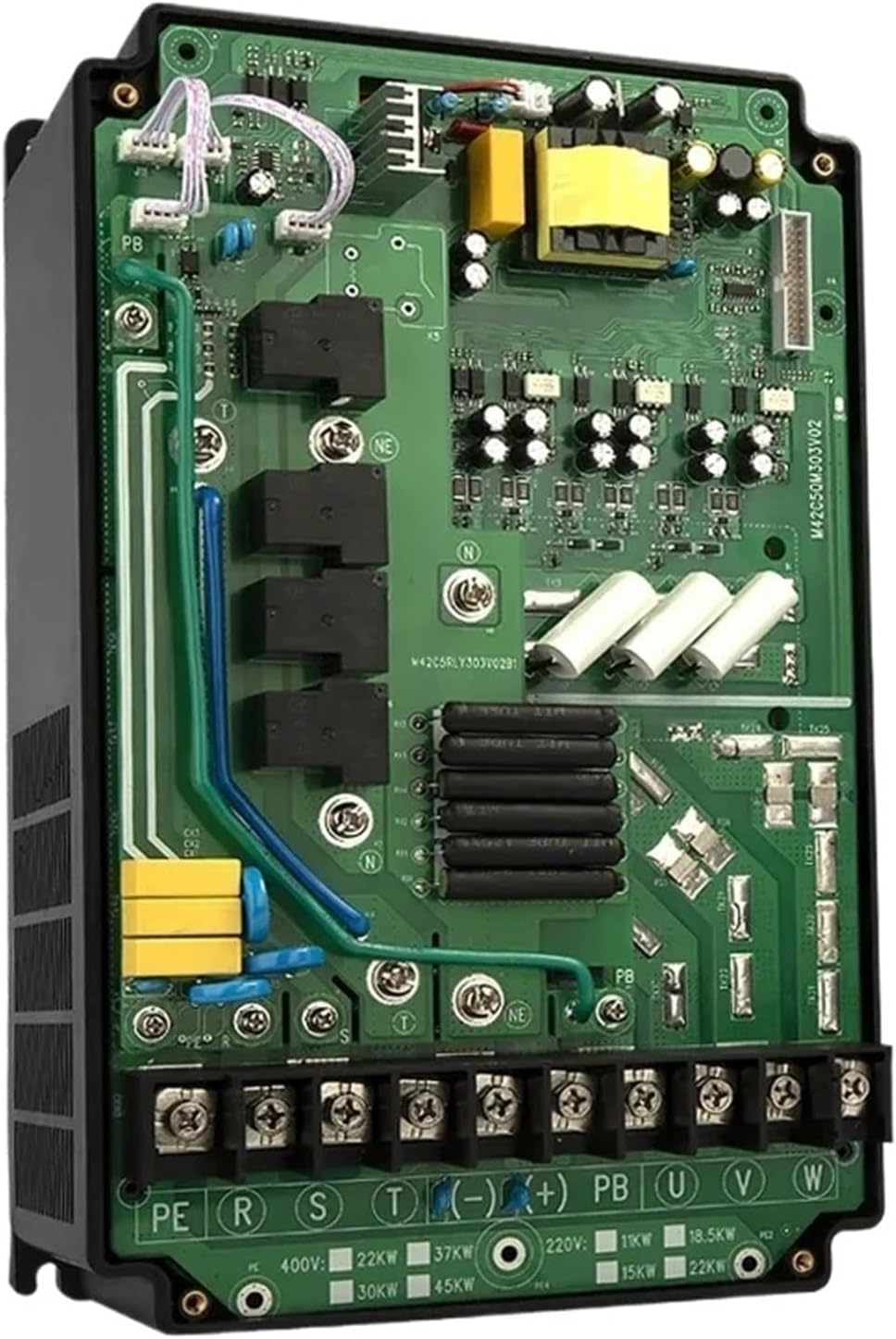

Durability: I score it a 6/10 due to the obvious cost-saving measures on the cooling fan and the bus capacitors. In a clean, cool environment, it will likely last for years. In a hot, dusty shop, I expect the fan to fail within 18-24 months.

Overall: The TDIOZABKX VFD review honest opinion is that it is a 7.5/10 device. It perfectly solves the problem of running a 3-phase machine on single-phase power for a budget-conscious buyer, but it demands that the buyer be a competent technician.

How It Stacks Up Against the Alternatives

The Shortlist I Was Choosing Between

I was torn between this TDIOZABKX unit, a Huanyang HY series 15KW drive, and building my own rotary phase converter using a 15KW idler motor. The Huanyang was cheaper but had a reputation for even worse documentation and higher failure rates. The rotary converter was attractive for its simplicity but lacked variable speed control and required a massive, heavy motor.

Feature and Price Comparison

Product	Price	Best Feature	Biggest Weakness	Best For
TDIOZABKX 15KW VFD	$952.32	Excellent power density and smooth output	Poor documentation and fan noise	Hobbyists needing variable speed
Huanyang HY Series 15KW	~$800	Lowest cost of entry	Higher failure rate, questionable QC	Extreme budget builds with low risk tolerance
Rotary Phase Converter (DIY)	~$1,500+	Simple, robust, handles surge loads well	Very heavy, no speed control, inefficient	Fixed-speed industrial machines

Where This Product Wins

The TDIOZABKX drive wins on sheer performance per dollar. If you need speed control, soft-start, and the ability to program multi-step speeds for a CNC machine, this is the superior choice. It is significantly lighter and more compact than a rotary converter, making it suitable for mobile workshops or small spaces. The output waveform is clean enough for sensitive electronics if you add an input filter.

Where I Would Buy Something Else

If your motor is running a fixed-speed application like a large air compressor or a conveyor belt, a rotary phase converter is a smarter, more durable investment. The VFD’s complex electronics become a liability in dirty, wet, or continuously running environments. I also suggest looking at our review of other workshop monitoring tools to better prepare your electrical infrastructure.

The People This Is Right For (and Wrong For)

You Will Love This If…

You are retrofitting a Bridgeport mill in your home garage and want variable speed without a Reeves drive. You are building a 3-phase CNC router and need a compact, adjustable power supply. You already own a 15KW 3-phase water pump and want to avoid the cost of a new motor. You are comfortable working inside an electrical panel and following wiring diagrams. You understand that you must derate the unit for continuous single-phase input.

You Should Look Elsewhere If…

You are a complete beginner to electrical work and just want to “plug and play.” You need a UL or CSA listed device for a commercial inspection or insurance purposes. You are running the drive 24/7 in an unattended facility and cannot tolerate a fan failure. For these users, a professionally installed rotary converter or a premium brand drive (like WEG or ABB) is the correct choice, despite the higher cost.

Things I Would Do Differently

What I Would Check Before Buying

I would carefully verify the physical dimensions against my electrical enclosure. The 15KW unit has a specific depth that includes the keypad protrusion. I had to move a mounting rail to fit it into my existing panel.

The Accessory I Should Have Bought at the Same Time

I should have purchased a proper braking resistor from the start. Stopping the heavy milling spindle instantly generates a massive voltage spike on the DC bus. Without the resistor, the drive uses a less effective dynamic braking method. Buying it together would have saved on shipping.

The Feature I Overvalued During Research

I overvalued the RS485 communication port. In theory, it allows for computer control. In practice, the protocol documentation is incomplete, and the communication parameters are hard to lock in. I spent a weekend trying to get it to talk to my Mach3 controller before giving up and using the simple analog input pins.

The Feature I Undervalued Until I Actually Used It

I undervalued the internal torque boost. The drive’s ability to deliver high starting torque without a current spike is remarkable. This protects both the motor windings and the machine gears from the shock of a direct-on-line start.

Whether I Would Buy the Same Product Again Today

Yes, I would. Despite the documentation frustration, the core electrical performance is exactly what I needed. The VFD 15KW review and rating I can give it now is confidently positive for my specific use case.

What I Would Buy Instead if the Price Had Been 20% Higher

If the price were $1,200, I would have looked much harder at a refurbished WEG CFW500. That level of investment demands better support and a known brand name for resale value. At $952, the TDIOZABKX is the pragmatic choice.

Pricing Reality Check

The current price of $952.32 is a fair value proposition. The unit delivers on its core promise of variable-frequency 3-phase power. I have seen the price fluctuate by about $50 over the past month, suggesting it is relatively stable. The total cost of ownership includes a mandatory braking resistor ($60-$100) and potentially a shielded motor cable ($50-$80). There are no subscriptions, and the unit has no consumables beyond the cooling fan. Value verdict: If you can accept the technical demands and the noise, the price is an absolute bargain for the power capability.

Warranty and After-Sale Support

The warranty is the standard 1-year limited warranty from the seller. The return window on Amazon is 30 days. Customer support is responsive but limited in English technical troubleshooting; they can handle basic “does it power on?” questions but will not help you tune PID loops. This reinforces that the buyer must be technically self-sufficient. I have seen reports of users getting replacement units for DOA drives, which is a good sign, but advanced technical support is essentially non-existent.

My Final Take

What This Product Gets Right

It gets the power conversion right. The 3-phase output is clean and balanced, even when derived from a single-phase line. It correctly soft-starts motors up to 15KW without tripping breakers, which is the primary job. The parameter menu, once understood, offers deep control over motor characteristics.

What Still Bothers Me

The cheap fan and the high-pitched transformer whine at idle are constant reminders that this is a budget device. The lack of a clear user manual means that many users will never unlock the full potential of the drive and will just settle for the factory defaults, which are often wrong.

Would I Buy It Again?

Yes, I would buy it again for my home workshop. It fills a specific and expensive gap in the market for converting household power to run industrial tools. It is not a luxury item; it is a practical tool that requires a skilled operator. I give it an overall score of 7.5/10.

My Recommendation

If you are technically handy, patient with parameter tables, and need to run a 15KW 3-phase machine at home, buy this unit. It is the most affordable path to that goal. If you want simplicity or professional support, choose a different path. Buy the TDIOZABKX VFD 15KW if this aligns with your situation, and leave a comment below about your own experience.

Reader Questions Answered

Is this actually worth the price, or is there a better option for less?

I believe it is worth the price for its power rating. Cheaper options like the Huanyang drives exist but often have higher failure rates and even worse support. If you are on a strict budget and have high tolerance for risk, you might save $150 by going with a no-name unit, but the peace of mind with the TDIOZABKX is worth the premium for most users.

How long does it take before you really know if it works for you?

You will know within the first hour if the unit is functional and can power your motor. However, tuning it for optimal performance—setting acceleration, deceleration, carrier frequency, and current limits—took me three separate sessions over the course of a week. Give it a full weekend before passing final judgment.

What breaks or wears out first?

The internal cooling fan is the primary wear item. It is an off-the-shelf 12V fan, but it runs constantly. In a typical garage environment, expect audible deterioration or failure within two years. Replacing it with a high-quality Sunon or Noctua fan is a standard modification.

Can a complete beginner use this without frustration?

No. I strongly advise against this for anyone who is not familiar with electrical schematics, high-voltage safety, and the basic theory of three-phase power. The learning curve is steep, and the documentation does not hold your hand. A mistake in wiring can destroy the drive or cause injury.

What should I buy alongside it to get the best results?

You need a braking resistor for any application with a high-inertia load (like a saw or mill). I also recommend a line filter to reduce electrical noise. For the motor connection, use a shielded VFD cable. You can view a compatible resistor option here.

Where is the safest place to buy it?

Amazon is the safest marketplace due to its robust return policy, buyer protection, and faster shipping. Be wary of random third-party e-commerce sites offering steep discounts, as warranty support for industrial electronics is unreliable outside of major platforms.

Does the VFD damage the motor with the high-frequency switching?

Yes, it can. The PWM signal sends voltage spikes that can degrade standard motor winding insulation over time. This is not unique to this drive. You should use an inverter-duty rated motor or install a motor reactor/dV/dt filter at the output.

How do I reset the drive to factory defaults?

There is a specific parameter (usually P0.00 or similar) that initializes the EEPROM. The manual is vague on this, but holding down certain keypad buttons during power-up also performs a reset. I recommend looking up the exact procedure for your specific firmware version before attempting it.
